A wizard that guides the administrator through the configuration of IPsec can be started using the Insert | Configuration wizards | IPsec wizard option in GCML. We will use it to create a simple IPsec configuration in the tunnel mode to securely connect our local network [10.8.20.0/24] and the remote network [10.8.21.0/24], and to tunnel the most frequently used protocols (tcp, udp, and icmp). In the tunnel mode, the entire IP packet is encrypted and authenticated, and then encapsulated into a new IP packet with a new IP header. The same wizard can be also used to configure IPsec in the transport mode, which will be illustrated later in this section.

On the first page, shown in Figure 6.88, “IPsec: General page”, we choose the name of the IPsec section in the configuration. Then we decide whether we want to use the IPsec in the transport or tunnel mode; we select the latter in this case. Furthermore, we add the three protocols we want to tunnel and choose network security association, because we want a single security association for each pair of communicating networks. (The other variant, unique, would create a security association for each pair of communicating hosts from the networks connected by IPsec.)

Figure 6.88. IPsec: General page

On the next page, shown in Figure 6.89, “IPsec: Tunnel network settings”, we define the tunnel network settings. The default ISAKMP port 500 is used on both ends of the IPsec tunnel. We define the lists of local and remote networks that will use the tunnel. In our example, there is a single local network [192.168.20.0/24] and a single remote network [192.168.21.0/24]. We must also define the physical tunnel addresses, local ^system.EXT.ipv4.host and remote 192.168.1.1. These addresses are used in the encapsulating header of IPsec packets and for communication of the ISAKMP daemon.

Figure 6.89. IPsec: Tunnel network settings

On the next three pages we can modify the settings of the ISAKMP negotiation phases and choose the authentication method (using either a pre-shared secret key, or X.509 certificates; for simplicity reasons, we use the former with the secret key in the example). In the first phase of negotiation, a security association is established between the ISAKMP daemons. Later, in the second phase of negotiations, it is used for creating security associations for pairs of networks or hosts. The options of the second phase are used for encryption and authentication of the tunneled packets. Both communicating gateways must specify the same options of the algorithm (otherwise, they would not be able to establish any security association). We leave the default choices in both phases. The pages are shown in figures Figure 6.90, “IPsec: Phase 1 negotiation settings”, Figure 6.91, “IPsec: Authentication settings”, and Figure 6.92, “IPsec: Phase 2 negotiation settings”. Finally, on the recapitulation page we can check the options and commit the wizard to the configuration, or return back and modify the settings.

Figure 6.90. IPsec: Phase 1 negotiation settings

Figure 6.91. IPsec: Authentication settings

Figure 6.92. IPsec: Phase 2 negotiation settings

The same wizard can be used to configure IPsec in the transport mode. In this mode, IPsec secures traffic passed via a tunnel (GIF or GRE) network interface. On the first wizard page (Figure 6.88, “IPsec: General page”), we select Transport mode. We must set parameters of the tunnel interface here: name, type, number, and local and remote addresses. The physical addresses of the tunnel endpoints, along with optional ISAKMP port numbers and a list of additional remote networks routed via the tunnel are specified on the next wizard page displayed in Figure 6.93, “IPsec: Transport physical network settings”.

Figure 6.93. IPsec: Transport physical network settings

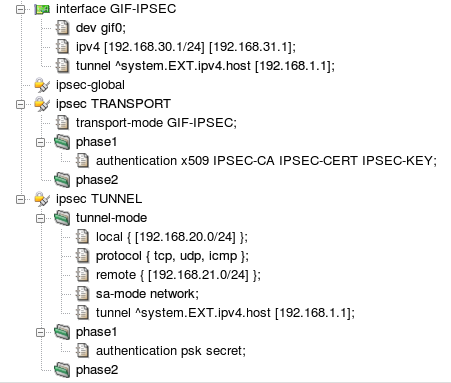

Figure 6.94. IPsec configuration

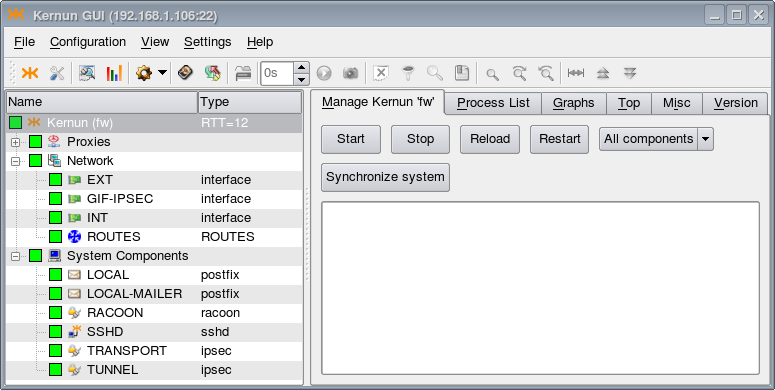

The resulting IPSec configuration in both modes is shown in Figure 6.94, “IPsec configuration”. When applied, IPsec-related components GIF-IPSEC, RACOON, TRANSPORT, and TUNNEL will be created and become visible in GKAT (see Figure 6.87, “IPsec components in a GKAT window”). For IPsec in the transport mode, the configuration contains the tunnel interface GIF-IPSEC. Its configuration section defines the interface device name, local and remote logical IP addresses, and the tunnel addresses (the physical IP addresses used for the encapsulation of tunneled packets). Section ipsec-global can contain global parameters of the ISAKMP daemon. There is a section for each IPsec tunnel. Section ipsec TRANSPORT configures IPsec in the transport mode for encryption of packets travelling via interface GIF-IPSEC. The authentication utilizes X.509 certificates. Other ISAKMP phase 1 and phase 2 parameters have the default values. Section ipsec TUNNEL sets up IPsec in the tunnel mode. It is not related to any network interface, hence the networking parameters — local, remote, and tunnel (physical) addresses, set of protocols handled by IPsec, and security association mode — are defined inside the ipsec section. A pre-shared secret key for authentication is specified. Again, the remaining ISAKMP parameters have the default values.
