20. Adaptive Firewall

Kernun UTM provides module Adaptive Firewall that detects and blocks suspicious traffic.

According to the configuration, it can either detect and log suspicious network traffic (in IDS mode), or also block it (in IPS mode). For detailed description of the IDS/IPS system, see adaptive-firewall(7) and ips(7).

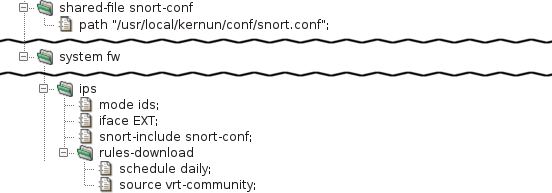

An example of Adaptive Firewall configuration is shown in Figure 5.83, “Adaptive Firewall”. The complete sample configuration is available in the /usr/local/kernun/conf/samples/cml/ids.cml file.

Figure 5.83. Adaptive Firewall

Adaptive Firewall

Adaptive Firewall consists of two parts, ids and ips. IDS is composed of several possible detectors, agent, honeypot and watchdog. Both IDS and IPS have their own databases that contain detected IP addresses (in case of IDS) or blocked IP addresses (in case of IPS).

IDS agent is an application that performs advanced inspection of network traffic by using complex rules downloaded from a central server to monitor traffic on interfaces specified by item iface. The rules are configured in section system.adaptive-firewall.ids.agent.rules while the rules download is configured in section system.update. IDS agent uses configuration file samples/shared/ids-agent.yaml by default. It is possible to provide a custom configuration file by specifying a shared-file agent.engine-cfg-file. Note that the file is processed by Kernun to propagate CML configuration, namely it adds logging, specified interfaces and path to the downloaded rules.

Honeypot is a detector that listens on given IP address that is not used for any other purpose. A client that tries to connect to this IP address is assumed to be an attacker and is reported to the IPS part of Adaptive Firewall.

Watchdog is a detector that monitors given files for occurences of given string patterns. It can be used for example to detect attackers that are trying to brute-force an SSH autentication. Configuration of this scenario can be seen in samples/include/sshd-watchdog.cml

IPS is enabled by the presence of section adaptive-firewall.ips. When enabled, the IP addresses reported by various IDS detectors are blocked by packet filter. Every minute, IPS decides which addresses to add from the IDS database to the IPS database and which addresses to remove from the IPS database because they were not seen for a long enough time, which can be controlled by item record-lifetime.

20.1. IDS agent variables

In order to increase the success rate of rules, it is possible to tell the IDS agent more about the network it is operating in. Sections agent.address-groups and agent.port-groups are designed for this purpose. Most rules refer to variables that can be defined here.

20.2. Rules update

Traffic analysis is based on rules that describe suspicious traffic. It is desirable to update the rules regularly. An automatic rule download system is available in Kernun UTM. This option can be configured with the rules-download section, which describes the rules download policy. By default, it is enabled and it uses Kernun rules. Use item schedule to define the update schedule. Item source defines the source of the rules. More items can be specified in order to finetune the rules download.

If you are using Kernun rules, it is highly recommended to enable feedback-upload to send the feedback containing matched rules back to Kernun server. The matched rules are used to improve the Kernun rules database in order to achieve high success rate of the IPS module.

20.3. Rules modification

Even though the rules provided by Kernun are thoroughly tested to eliminate false positive matches, they can still happen. Therefore, the administrator can modify the downloaded rules by items in the rules section. It is also possible add custom rules by specifying items add-rule or include-rules.

A rule that is distributed as disabled can be enabled by item enable-rules. A disabled rule is commented out in the downloaded rule file so the IPS engine would otherwise ignore it.

When disabling a rule, the administrator has more options. A rule can be disabled unconditionally by item disable-rule or only for certain IP addresses by item rule-suppress. It is also possible to disable all rules for certain IP addresses by item global-suppress.

In IPS mode, it is sometimes desired to change the rule action from alert to drop or reject. This can be done by items change-rules-to-drop and change-rules-to-reject.

Items rule-rate-filter and global-rate-filter can be used to change the rule action after the rule matched a certain number of times within a specified time frame. Similarly, items rule-threshold and global-threshold alter the rule so it is applied only after it matches a certain number of times within a specified time frame.

When the above methods are not sufficient, it is also possible to modify a certain rule by providing a regular expression and a replacement string in item modify-rules.
